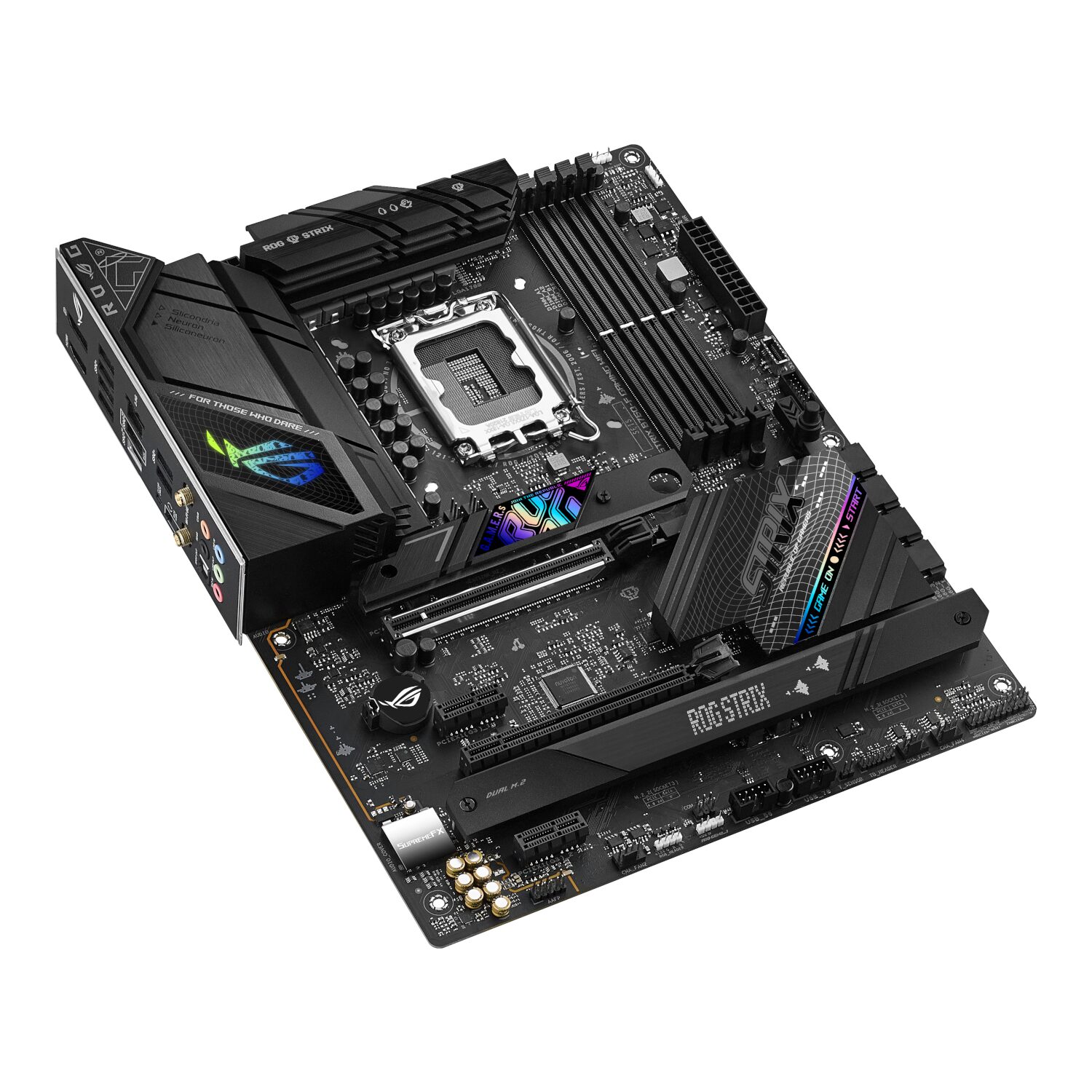

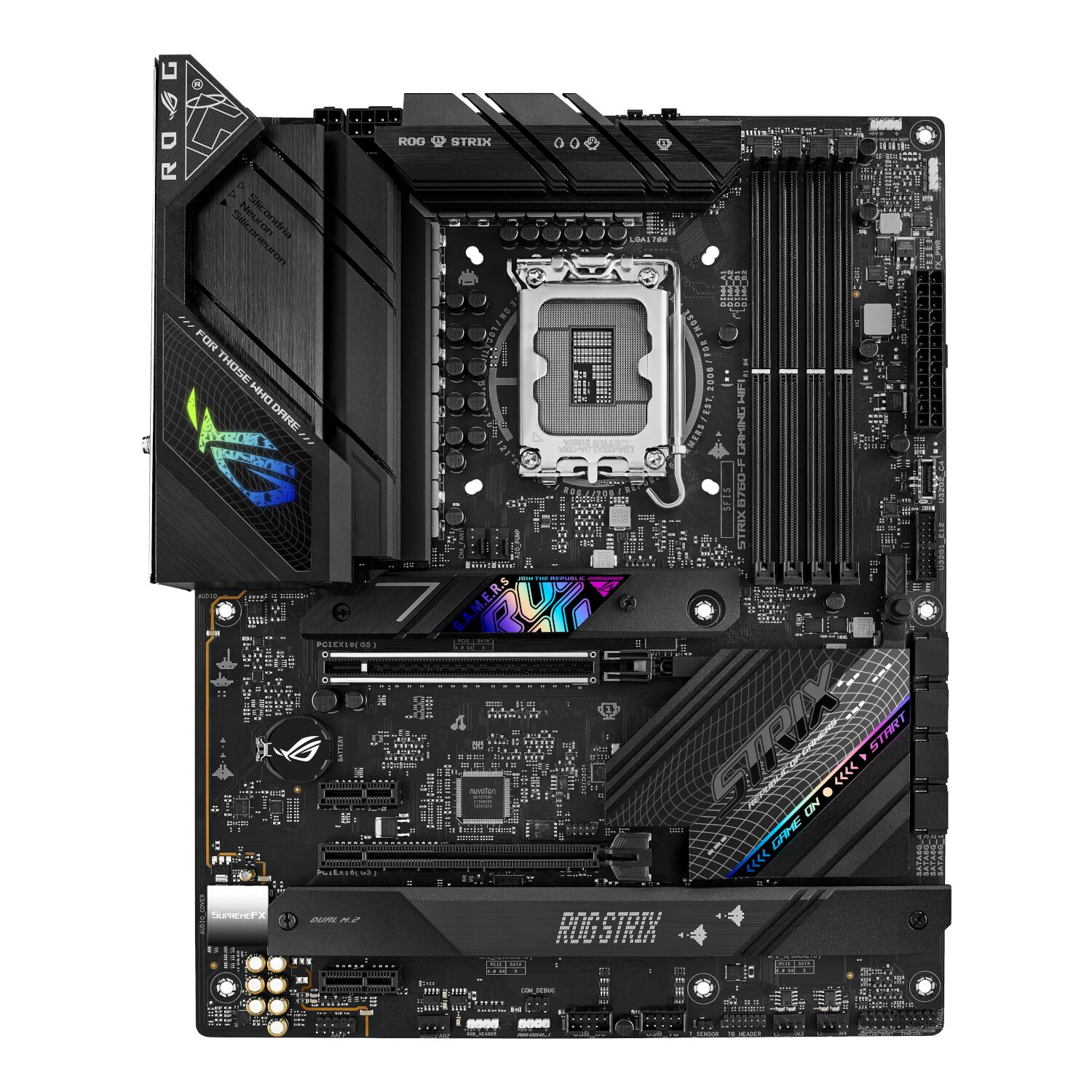

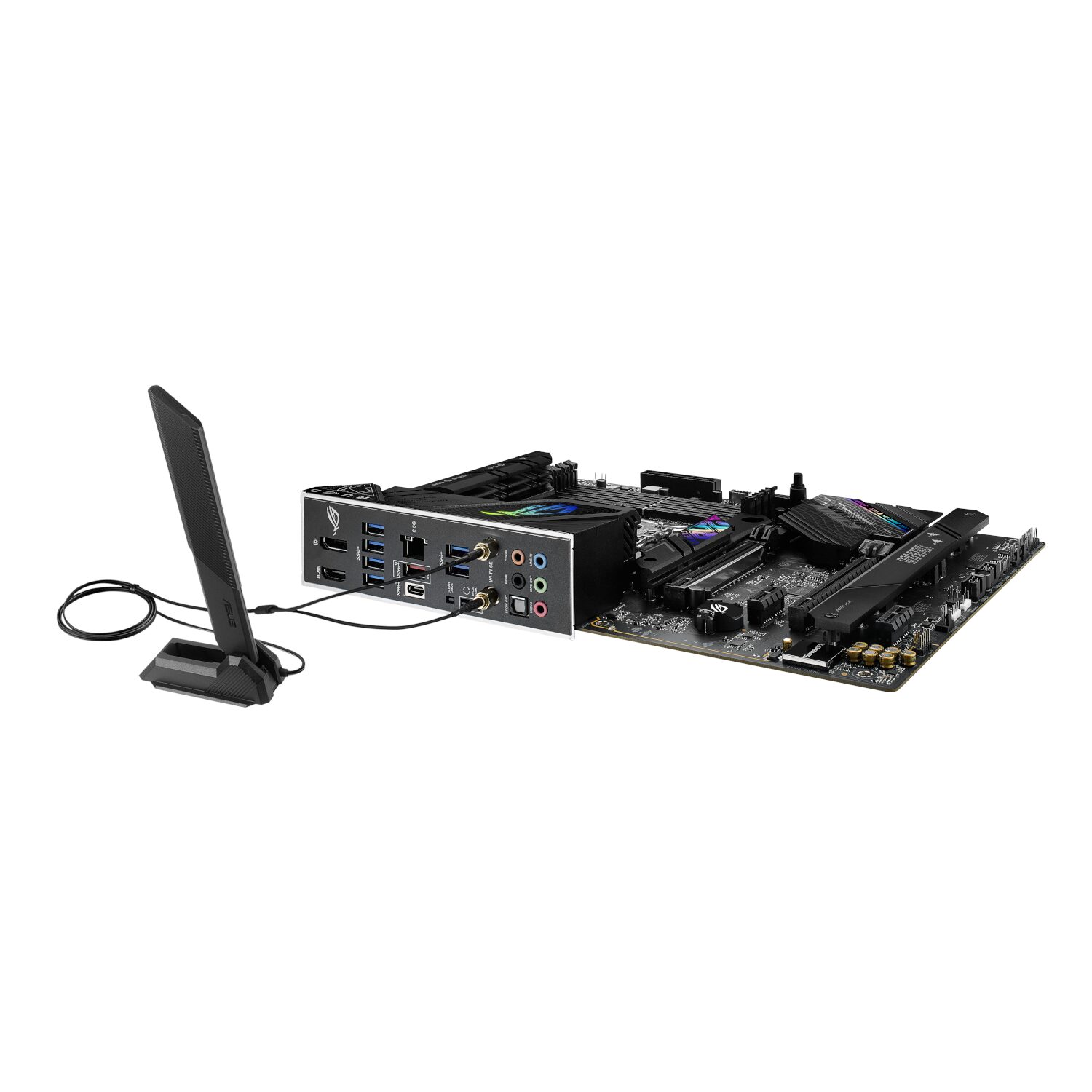

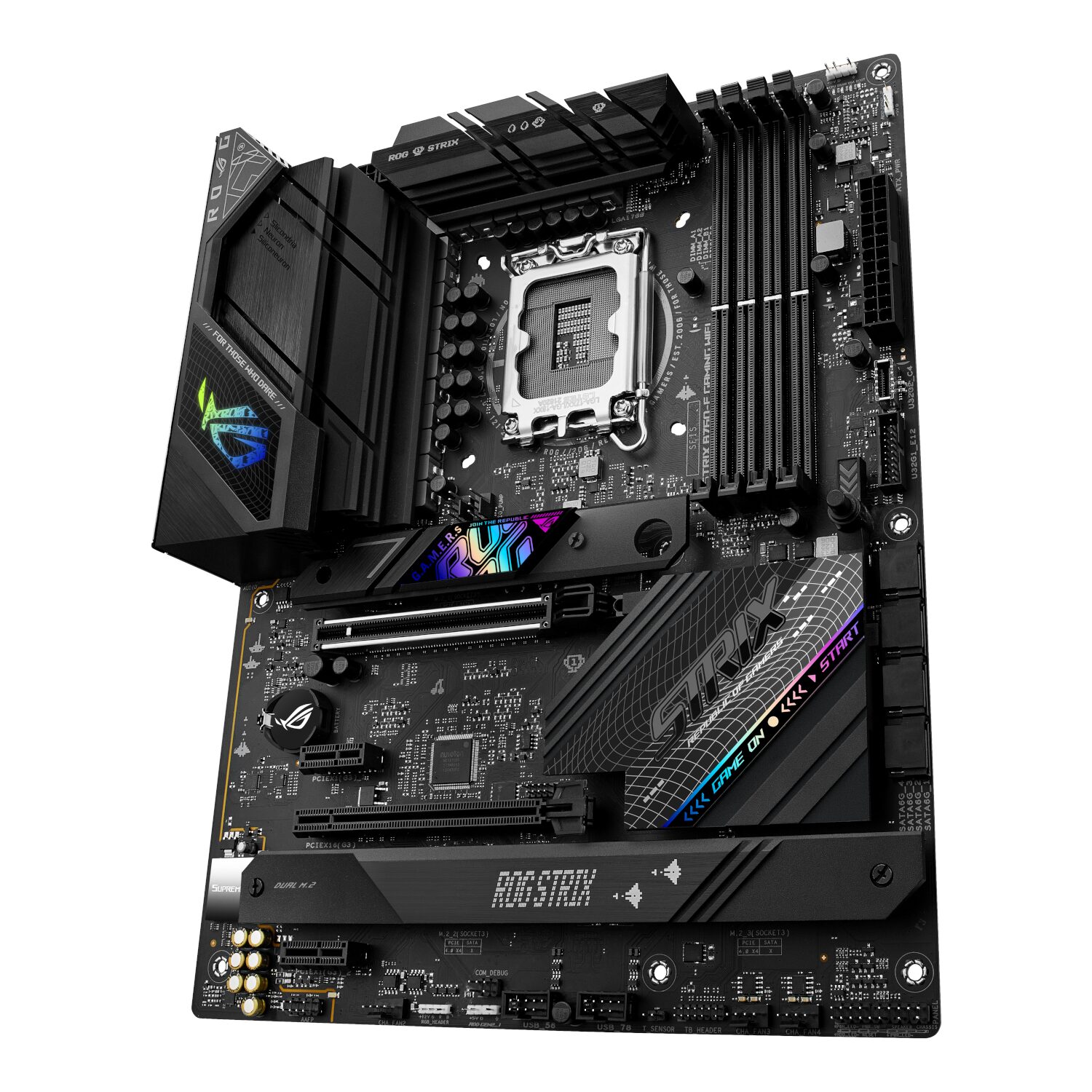

Asus ROG Strix B760-F Gaming WiFi Motherboard – Intel LGA1700
Asus ROG Strix B760-F Gaming WiFi Motherboard – Intel LGA1700
Asus ROG Strix B760-F Gaming WiFi Motherboard – Intel LGA1700
Asus ROG Strix B760-F Gaming WiFi Motherboard – Intel LGA1700
Asus ROG Strix B760-F Gaming WiFi Motherboard – Intel LGA1700
Asus ROG Strix B760-F Gaming WiFi Motherboard – Intel LGA1700

Asus ROG Strix B760-F Gaming WiFi Motherboard – Intel LGA1700

R6,799.00
R6,299.00 -7% OFF
  • Asus ROG Strix B760-F Gaming WiFi Motherboard – Intel LGA1700.
Availability: 1 in stock
Categories: Hardware Motherboard Intel
SKU: ROGSTRIXB760-FGAMINGWIFI
Specifications
  •  CPU
  1. Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
  2. Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
  3. Chipset: Intel® B760 Chipset
  • Memory
  1. 4 x DIMM, Max. 192GB, DDR5 7800(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 MHz Non-ECC, Un-buffered Memory
  2. Dual Channel Memory Architecture
  3. Supports Intel® Extreme Memory Profile (XMP)
  4. OptiMem II
  • Graphics
  1. 1 x DisplayPort
  2. 1 x HDMI™ Port

    Expansion Slots

  • Intel® Core™ Processors (14th & 13th & 12th Gen)
  1. 1 x PCIe 5.0×16 slot (supports x16 mode)
  • Intel® B760 Chipset
  1. 1 x PCIe 3.0 x16 slot (supports x4 mode)
  2. 2 x PCIe 3.0 x1 slots

    Storage

  • Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
  • Intel® Core™ Processors (14th & 13th & 12th Gen)
  1. M.2_1 slot (Key M), type 2242/2260/2280  (supports PCIe 4.0 x4 mode)
  • Intel® B760 Chipset
  1. M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 )
  2. M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 )
  3. 4 x SATA 6Gb/s ports
  • Ethernet: 1 x Intel® 2.5Gb Ethernet, ASUS LANGuard
  • Wireless & Bluetooth
  • Wi-Fi 6E
  • 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
  • Supports 2.4/5/6GHz frequency band
  • Bluetooth® v5.3

    USB

  • Rear USB (Total 8 ports)
  1. 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
  2. 1 x USB 3.2 Gen 2 port (1 x Type-A)
  3. 6 x USB 3.2 Gen 1 ports (6 x Type-A)
  • Front USB (Total 7 ports)
  1. 1 x USB 3.2 Gen 2 connector
  2. 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
  3. 2 x USB 2.0 headers support 4 additional USB 2.0 ports

    Audio

  • ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
  1. Impedance sense for front and rear headphone outputs
  2. Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
  3. High-quality 120 dB SNR stereo playback output and 110 dB SNR recording input
  4. Supports up to 32-bit/384 kHz playback on front panel”
  • Audio Features
  1. SupremeFX Shielding Technology
  2. Savitech SV3H712 AMP
  3. Rear optical S/PDIF out port
  4. Premium audio capacitors
  5. Audio cover

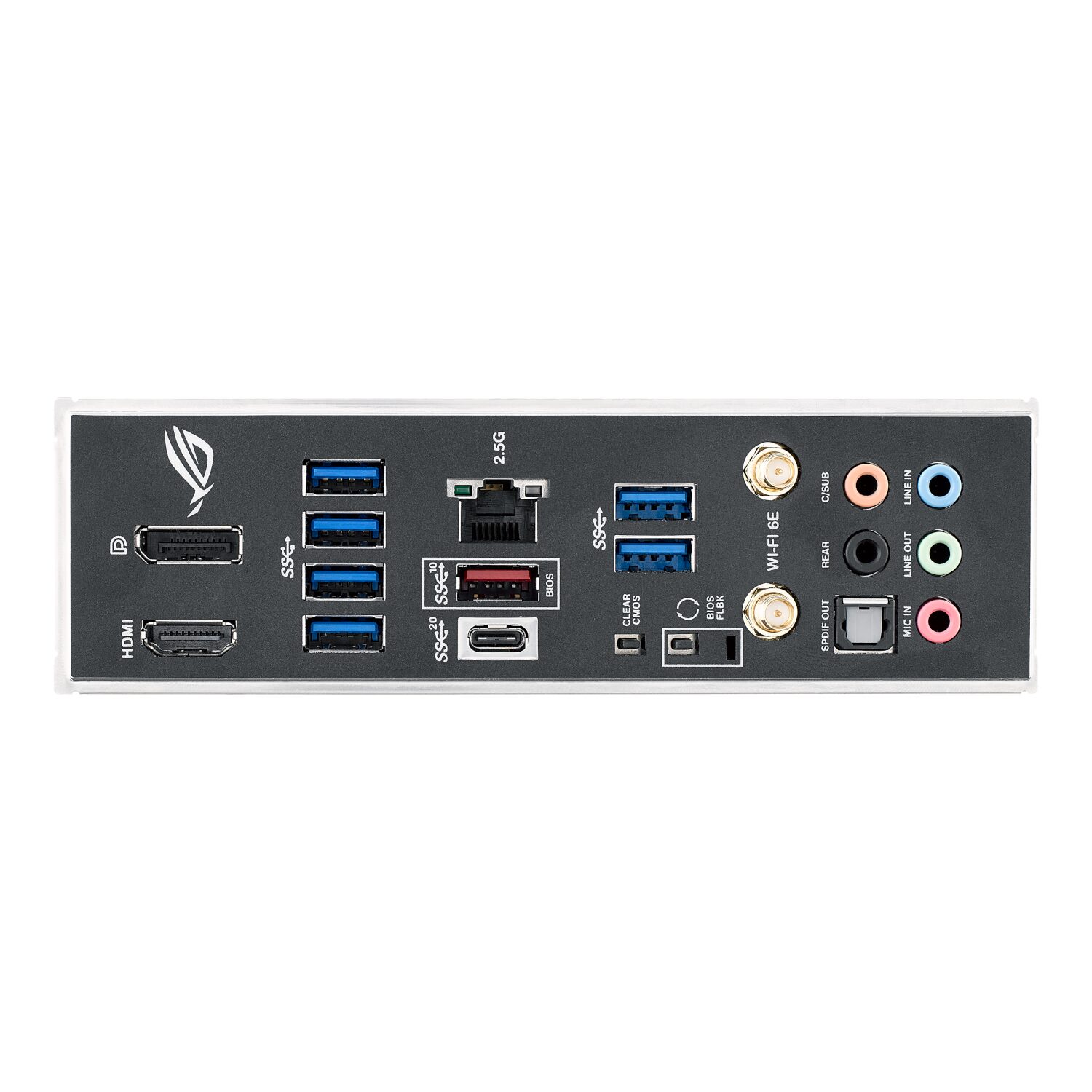

  • Back Panel I/O Ports
  1. 1 x USB 3.2 Gen 2×2 port  (1 x USB Type-C®)
  2. 1 x USB 3.2 Gen 2 port (1 x Type-A)
  3. 6 x USB 3.2 Gen 1 ports (6 x Type-A)
  4. 1 x DisplayPort
  5. 1 x HDMI® port
  6. 1 x Wi-Fi Module
  7. 1 x Intel® 2.5Gb Ethernet port
  8. 5 x Audio jacks
  9. 1 x Optical S/PDIF out port
  10. 1 x BIOS FlashBack™  button
  11. 1 x Clear CMOS button

    Internal I/O Connectors

  • Fan and Cooling related
  1. 1 x 4-pin CPU Fan header
  2. 1 x 4-pin CPU OPT Fan header
  3. 1 x 4-pin AIO Pump header
  4. 4 x 4-pin Chassis Fan headers
  • Power related
  1. 1 x 24-pin Main Power connector
  2. 1 x 8-pin +12V Power connector
  3. 1 x 4-pin +12V Power connector
  • Storage related
  1. 3 x M.2 slots (Key M)
  2. 4 x SATA 6Gb/s ports
  • USB
  1. 1 x USB 3.2 Gen 2 connector (supports USB Type-C® )
  2. 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
  3. 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • Miscellaneous
  1. 3 x Addressable Gen 2 headers
  2. 1 x Aura RGB header
  3. 1 x Front Panel Audio header (AAFP)
  4. 1 x 20-3-pin System Panel header with Chassis intrude function
  5. 1 x Thermal Sensor header
  6. 1 xThunderbolt™ (USB4®) header

    Special Features

  •     Extreme Engine Digi+
  1.         5K Black Metallic Capacitors
  •     ASUS Q-Design
  1.         M.2 Q-Latch
  2.         PCIe Slot Q-Release
  3.         Q-DIMM
  4.         Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  5.         Q-Slot
  •     ASUS Thermal Solution
  1.         M.2 heatsink
  2.         VRM heatsink
  •     ASUS EZ DIY
  1.         BIOS FlashBack™ button
  2.         BIOS FlashBack™ LED
  3.         Clear CMOS button
  4.         CPU Socket lever protector
  5.         ProCool
  6.         Pre-mounted I/O shield
  7.         SafeSlot
  8.         SafeDIMM
  •     Aura Sync
  1.         Aura RGB header
  2.         Addressable Gen 2 headers

  Software Features

  •     ROG Exclusive Software
  1.         GameFirst VI
  2.         ROG CPU-Z
  3.         Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
  4.         Sonic Radar III
  5.         DTS® Sound Unbound
  •     ASUS Exclusive Software
  •     Armoury Crate
  1.         AIDA64 Extreme (60-day free trial)
  2.         Aura Creator
  3.         Aura Sync
  4.         Fan Xpert 4
  5.         Power Saving
  6.         Two-Way AI Noise Cancellation
  •     AI Suite 3
  1.         Performance And Power Saving Utility
  2.         DIGI+ VRM
  3.         PC Cleaner
  •     MyAsus
  •     Norton 360 for Gamers
  •     WinRAR
  •     UEFI BIOS
  •     ASUS EZ DIY
  1. – ASUS CrashFree BIOS 3
  2. – ASUS EZ Flash 3
  3. – ASUS UEFI BIOS EZ Mode
  •     MemTest86
  •     BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
  •     Manageability: WOL by PM
  •     Operating System: Windows® 11, Windows® 10 64-bit
  •     Form Factor
  •     ATX Form Factor
  •     Dimensions: 30.5 x 24.4 cm


Engineered for uncompromising performance and seamless integration with next-gen hardware, the Asus ROG Strix B760-F Gaming WiFi motherboard is the ideal foundation for gamers, creators, and PC enthusiasts. Powered by the Intel B760 chipset and compatible with 12th, 13th and 14th Gen Intel Core processors, it supports the LGA1700 socket and unleashes the full potential of Intel’s hybrid architecture.

With support for up to 128GB of ultra-fast DDR5 memory across four DIMM slots, the Asus ROG Strix B760-F Gaming Motherboard ensures accelerated multitasking, faster data handling, and superior bandwidth. PCIe 5.0 x16 graphics support offers next-level performance for the latest GPUs, while three M.2 slots with PCIe 4.0 deliver rapid storage with reduced latency and higher throughput. WiFi 6E and Intel 2.5Gb Ethernet provide ultra-reliable, low-latency networking for competitive online gaming and streaming.

Enhanced cooling is assured via large VRM heatsinks, hybrid fan headers, and M.2 heatsinks that maintain system stability during high-load operations. Advanced connectivity includes rear USB 3.2 Gen 2×2 Type-C®, front USB Type-C®, and HDMI® 2.1 and DisplayPort 1.4 outputs for modern displays. The ROG Strix B760-F Gaming also incorporates intuitive features like Q-LED diagnostic indicators, BIOS FlashBack™, and a pre-mounted I/O shield for streamlined assembly and maintenance.

Designed with bold cyberpunk-inspired styling, premium components, and Aura Sync RGB lighting, the Asus ROG Strix B760-F Gaming delivers a visually immersive and technically advanced platform for next-gen PC builds.

  • Weight
    1.270
  • Dimensions
    28.00 x 7.10 x 26.50
